Hydraulic Mini Skid Steers Keep 300kg Stable in Tight Aisles

2026/04/22 09:58

A 300 kg pallet, a 1.2 m corridor, painted walls on both sides—here, raw engine power matters far less than how the mini skid steer hydraulic system starts, stops, and steadies the boom. Our KATAR SDLL20 mini skid loader (750 kg machine weight, 300 kg rated load, 3200 × 1150 × 1500 mm) is specifically engineered around this exact scenario: delivering a strong hydraulic system that safely lifts 300 kg while keeping movements incredibly smooth and predictable in tight spaces.

KATAR SDLL20 mini skid steer in a narrow aisle

Hydraulic Control That Keeps 300 kg Steady in Tight Aisles

On our SDLL20, an 8.6 kW Briggs & Stratton engine drives a high‑performance hydraulic system designed for smooth, controlled lifting. Power flows efficiently from the engine to the hydraulic drive and then directly to the boom cylinders. This means a small input at the operator's controls translates instantly into a measured, predictable boom movement.

With a 300 kg rated load and 380 kg bucket capacity, our mini skid steer hydraulic system supports careful pallet placement, precise loading and unloading, and delicate bucket work where any sudden jerk could scrape walls or damage racks. Operators can comfortably raise loads to the 2000 mm unloading height while maintaining stable, low‑vibration control throughout the entire lift.

One‑pole Lifting and Hydraulic Power Steering for Precise Moves

Across both our SDLL20 wheel and track versions, lifting relies on a one‑pole operation for lifting and unloading materials. This significantly simplifies work in narrow corridors. Instead of coordinating multiple levers, the operator manages the lift with a single, intuitive motion. This smart design drastically reduces the chance of over‑correction when working dangerously close to obstacles.

SDLL20 one-pole lifting and hydraulic controls

Hydraulic power steering further supports tight‑space maneuvering. It minimizes steering effort and allows continuous, fine adjustments as the loader moves beside walls, trucks, or pallet racks. Combined with the compact 1150 mm machine width, this responsive steering feel helps keep both the machine and the 300 kg load under precise, effortless control.

Wheel vs. Track SDLL20 for Different Ground Conditions

We offer the SDLL20 platform in both wheel and track (crawler) walking modes. Both share the exact same core mini skid steer hydraulic system but react differently to specific ground conditions to suit your job site:

Track version – Our tracked models feature a superior track system with smooth travel and strong traction on mud, rocks, slopes, and uneven ground. This guarantees stable, controlled lifting even when the surface underneath is highly unstable.
Wheel version – Our wheel steer loader boasts excellent off‑road capability and strong hill‑climbing ability. It is absolutely ideal for firm yards, concrete, and compacted soil, where agile repositioning effectively shortens cycle times between pick and place points.

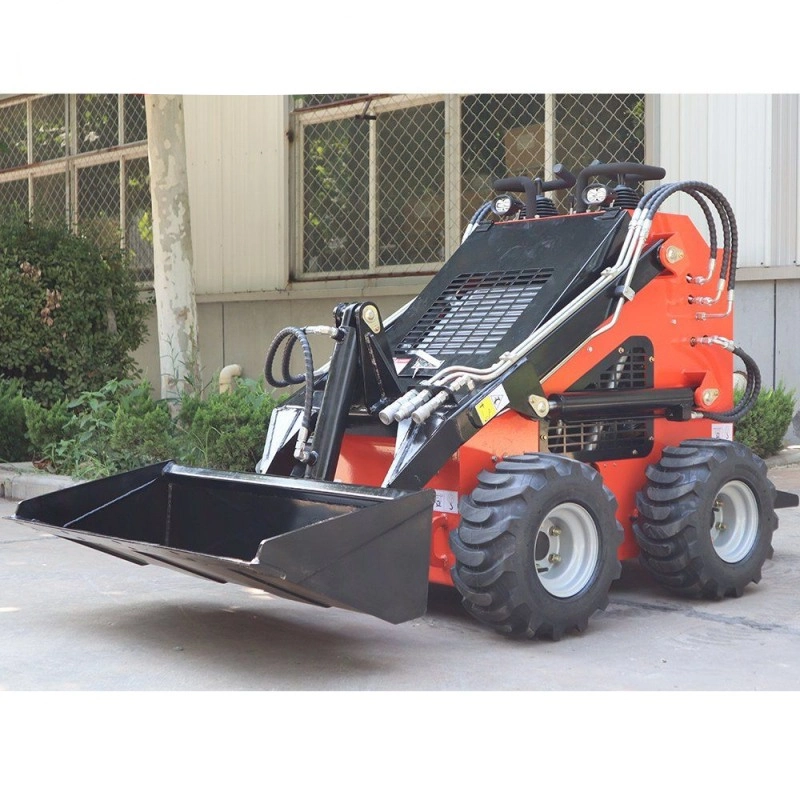

Wheel SDLL20 mini skid steer working

In both cases, the decisive factor in tight areas isn't just extra engine power, but the perfect combination of hydraulic smoothness, one‑pole lifting, and hydraulic power steering that keeps those 300 kg lifts perfectly predictable.

Key Specifications to Check Before Ordering

When evaluating a 300 kg lift mini loader from a reliable Skid Steer Loader China Manufacturer like us, the SDLL20 offers a concise, transparent spec set to compare against your site constraints:

Product weight: 750 kg
Rated load: 300 kg
Bucket capacity: 380 kg
Lifting: one‑pole operation for lifting and unloading
Unloading height: 2000 mm; overall height: 2700 mm
Overall size: 3200 × 1150 × 1500 mm
Walking mode: wheel or crawler (track); drive mode 4×4 (4WD)/track
Steering: hydraulic power steering
Certification: CE, EPA (model SDLL20)
Video outgoing inspection: provided

Technical drawing of SDLL20 wheel steer loader

Together, these parameters highlight how size, weight, and our mini skid steer hydraulic system work seamlessly as one package for narrow‑aisle precision.

Buyer Checklist for Compact Hydraulic Loaders

For operations where collision risk is high and space is limited, we highly recommend prioritizing the following:

A verified 300 kg rated load on a compact 750 kg chassis.
One‑pole hydraulic lifting for consistent, repeatable boom motion.
Hydraulic power steering paired with an 1150 mm machine width.
A walking mode (wheel or track) matched perfectly to your typical ground conditions.
OEM/ODM options for custom colors, configurations, and emission‑standard engines.
Video outgoing inspection and 100% testing before delivery, which we proudly offer for every unit.

For additional technical details, custom options, or direct quotations, you can reach our expert Katerina by email at Katerina@sdlanch.com or easily connect via WhatsApp.

Frequently Asked Questions

Q1: Are you a factory or a trading company?
A1: Yes, we are a factory with more than 8 years of dedicated manufacturing experience. Comprehensive OEM/ODM customization is available to meet your specific brand needs.

Q2: What are your standard payment and delivery terms?
A2: We typically require T/T with a 30% deposit, and the remaining 70% before delivery. We will show you photos of the products and packages before you pay the balance. We support EXW, FOB, CFR, and CIF delivery terms.

Q3: How long does it usually take to deliver an SDLL20 order?
A3: Our standard lead time is 7–10 working days after receiving the advance payment, depending entirely on the specific item and your order quantity.

Q4: How is the mini skid steer packed for export?
A4: Generally, we use standard exported wooden or plywood cases for LCL goods, and ensure the machines are fixed securely for FCL shipments.

Q5: Do you test the equipment before shipment?
A5: Absolutely. We conduct a 100% test before delivery to ensure top performance. Furthermore, video outgoing inspection is provided for your peace of mind.

Q6: Which parts of the SDLL20 can be customized?
A6: We offer extensive customization. You can choose custom colors, wheel or track configurations, tailored packaging, functional setups, logo printing, and engine options that strictly meet Euro III, Euro V, or EPA emission standards.
